PCE-VT 3700S - Μετρητής Δονήσεων για έλεγχο & συντήρηση

PCE Instruments logo
894.00 €
SKU PCE-VT 3700S
Κωδικός Τιμή Στοκ
PCE-VT 3700S 894.00 € Διαθέσιμο


Στις τιμές δεν συμπεριλαμβάνεται ΦΠΑ 24%

Οδηγίες Χρήσης
Measuring range Acceleration
xa0 0.0 ... 399.9 m/s²
Resolution 0.1 m/s²
Accuracy @ 160 Hz plus-minus2 %
Frequency range 10 Hz ... 1 kHz
xa0 10 Hz ... 10 kHz
xa0 xa0
Measuring range Velocity
xa0 0.00 ... 399.9 mm/s
Resolution 0.1 mm/s
Accuracy @ 160 Hz plus-minus2 %
Frequency range 10 Hz ... 1 kHz
xa0 xa0
Measuring range Displacement
xa0 0.000 ... 3.9 mm
Resolution 1 microm
Accuracy @ 160 Hz plus-minus2 %
Frequency range 10 Hz ... 200 Hz
xa0 xa0
Measurement parameters RMS, Peak, Peak-Peak
xa0 Crest factor
Units switchable metric / imperial
Display 3.5" LC display
Menu languages English, German, French
xa0 Spanish, Italian, Dutch
xa0 Portuguese, Turkish, Polish
xa0 Russian, Chinese, Japanese
Power supply 3 x 1.5 V AA batteries
Operating and storage conditionsxa0xa0 -20 ... +65 degreesC / -4 ... 149 degreesF; 10 ... 95 % r.H.
Dimensions 150 x 80 x 38 mm / 5.9 x 3.1 x 1.5"
Weight 170 g / 6 oz
xa0 xa0
Technical Data Vibration Sensor
Resonance frequency 30 kHz
Transverse sensitivity ≤ 5%
Destruction limit 5000 g (peak)
Operating and storage temperature -20 ... +80 degreesC / -4 ... 176 degreesF; max. 95 % r.H.
Housing material Stainless steel
Mounting thread M5
Dimensions 16 x 36 mm / 0.6 x 1.4"
Weight (without cable) 35 g / 1.2 oz
xa0 xa0

Handy entry-level device for vibration monitoring of machines and systems / HOLD function / Peak value measurement / Handheld device for mobile vibration measurement / Automatic ISO 10816-3 evaluation

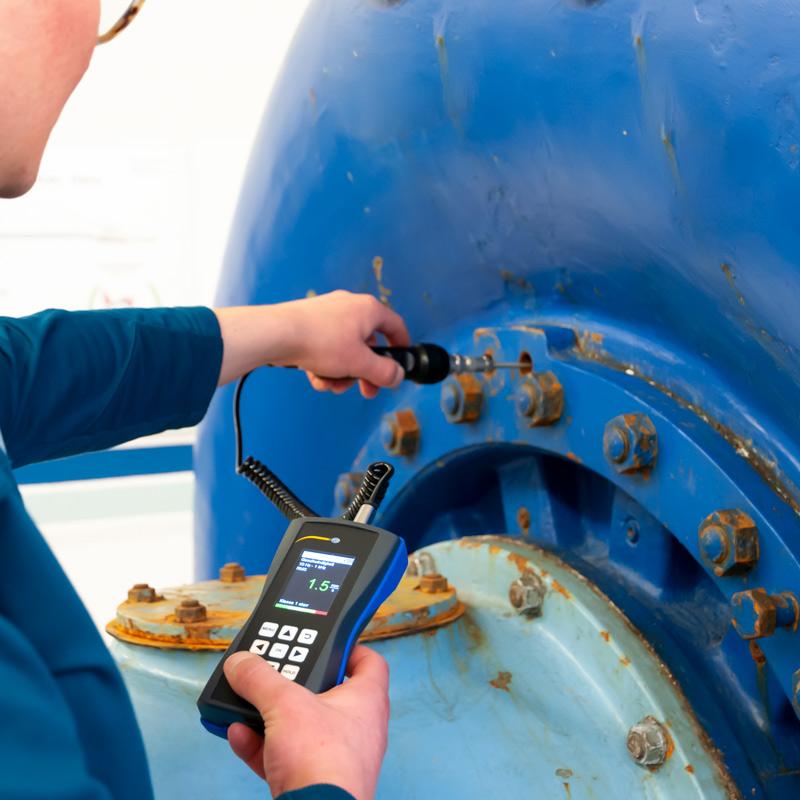

The vibration meter is ideal for maintenance workers to quickly check vibrating parts, machines and systems. This vibration meter shows the vibration acceleration, vibration velocity and vibration displacement directly on the display. You can use the device to quickly and reliably detect machine imbalances which can lead to, for example, bearing damage. The vibration meter is equipped with a mode that allows a measurement according to ISO 10816-3 to be carried out. The vibration meter analyzes the measured values and automatically shows a good / bad evaluation on the display.

The vibration meter is supplied with a sensor on the spiral cable, magnet adapter, service bag and batteries. The ISO factory certificate completes the scope of delivery. The display of the vibration meter is a colored graphic display, which makes operation easier, since all instructions and menu items are shown in plain text. The 12 languages in the menu of the vibration meter are easily switchable.

- Automatic ISO 10816-3 evaluation
- Easy to handle
- For mobile vibration measurement
- Colored graphic display
- Peak-hold function
- Incl. ISO calibration certificate

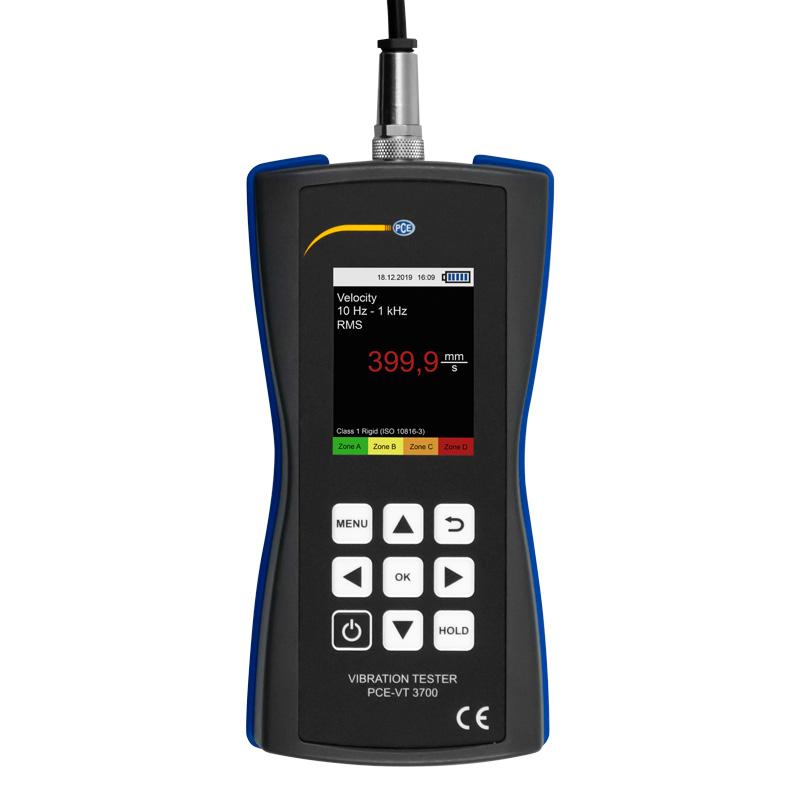

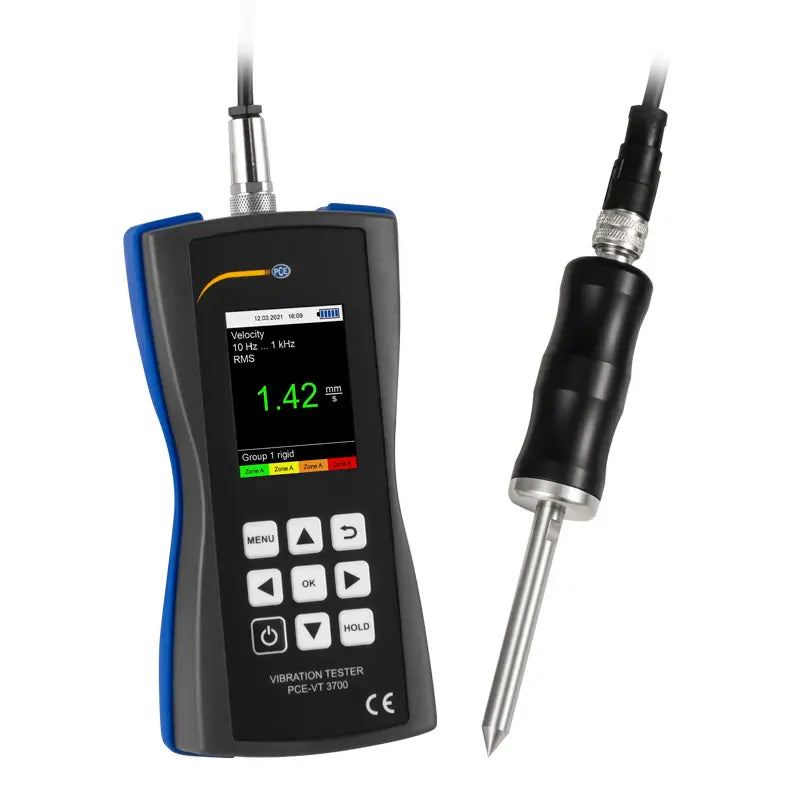

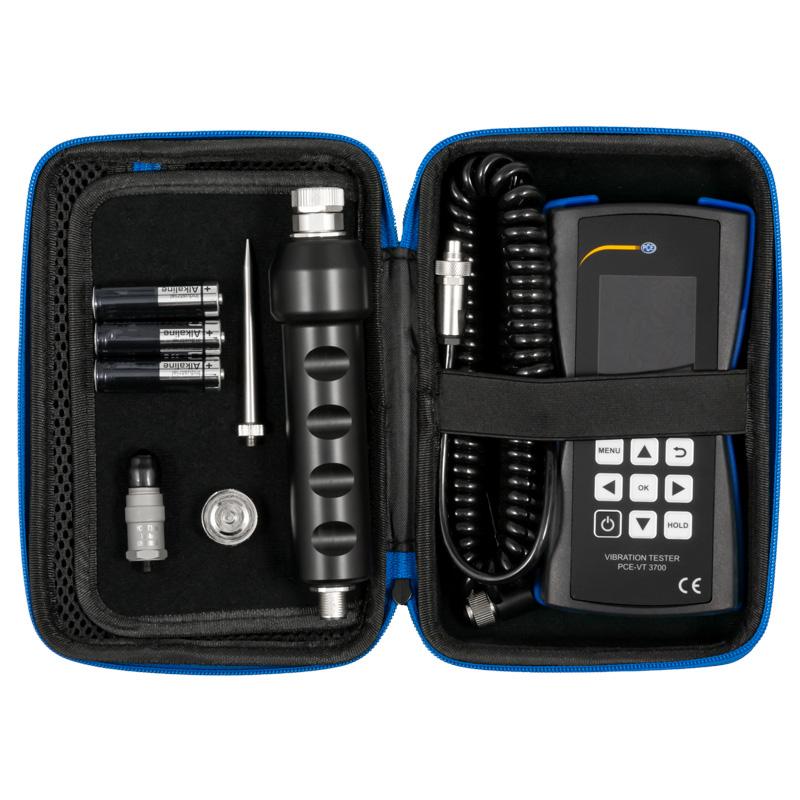

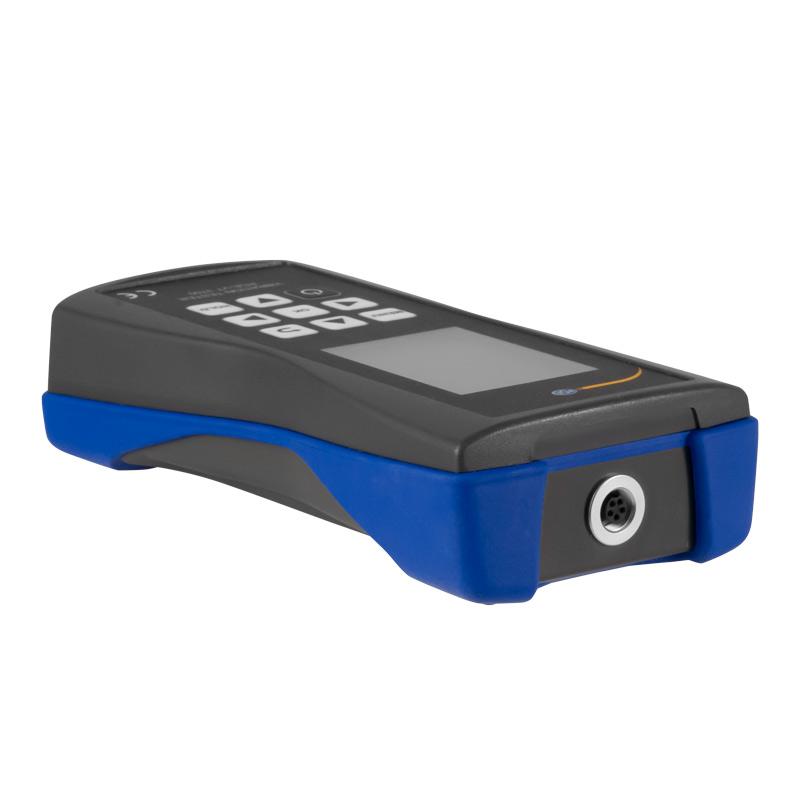

1 x Vibration Meter PCE-VT 3700S

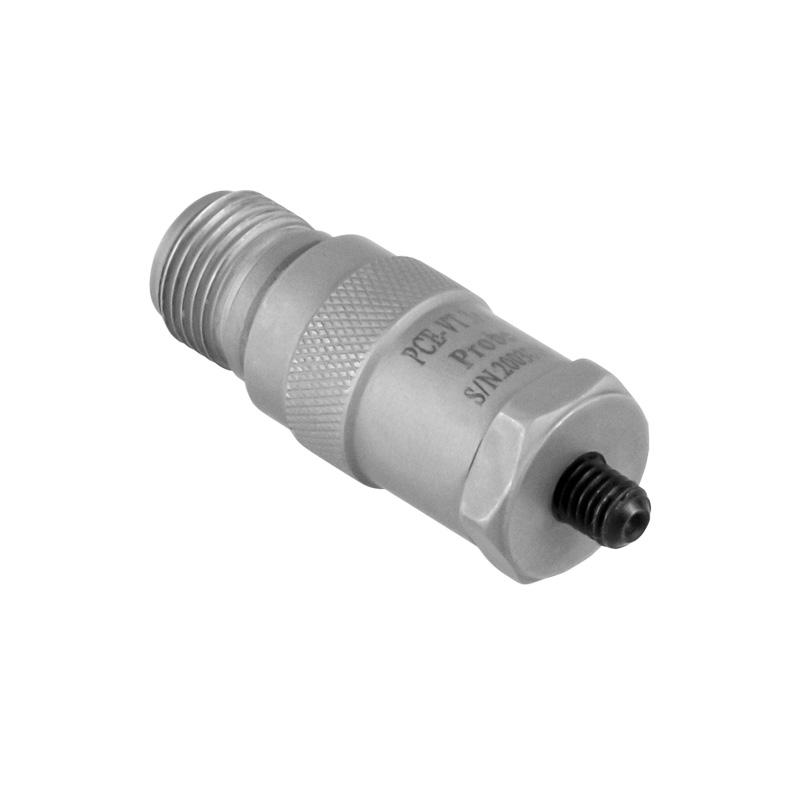

1 x Sensor with spiral cable PCE-VT 3xxx SENSOR
1 x Magnet adapter PCE-VT VMH

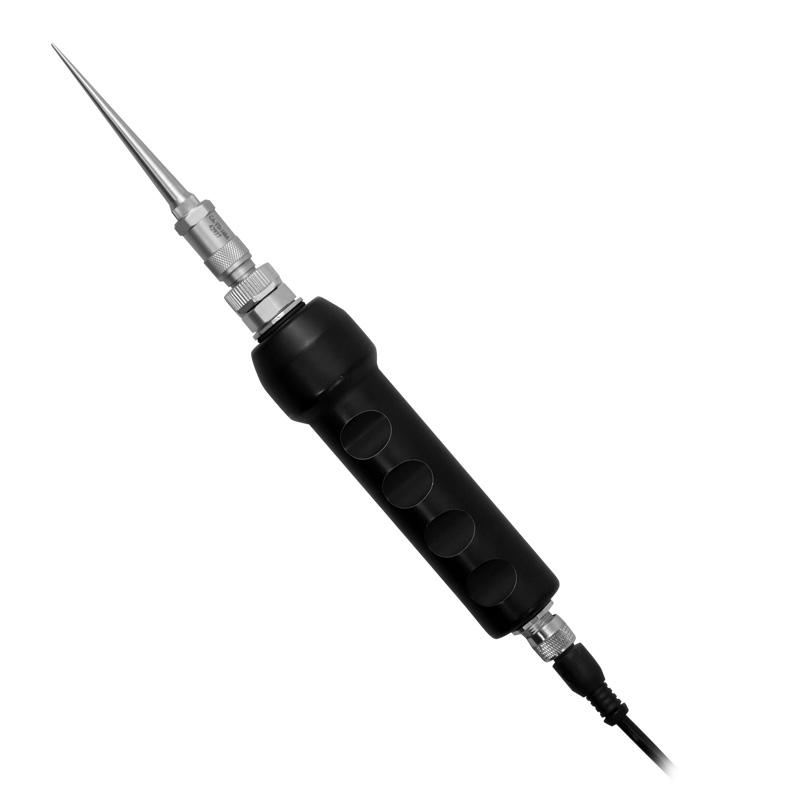

1 x Needle sensor PCE-VT NP
1 x Handgrip PCE-VT 3xxx HANDLE
3 x 1.5 V AA batteries
1 x Quickstart guide
1 x Service bag
1 x ISO calibration certificate
