Μετρητής Δονήσεων για έλεγχο & συντήρηση PCE-VM 5000 Pce

PCE-VM 5000 - Μετρητής Δονήσεων για έλεγχο & συντήρηση

PCE Instruments logo
2,194.00 €
SKU PCE-VM 5000
Κωδικός Τιμή Στοκ
PCE-VM 5000 2,194.00 € Με Παραγγελία


Στις τιμές δεν συμπεριλαμβάνεται ΦΠΑ 24%

Οδηγίες Χρήσης



Technical Specifications
Display 82 mm x 61 mm / 3.22 in x 2.4 in ("), LCD display with background lights

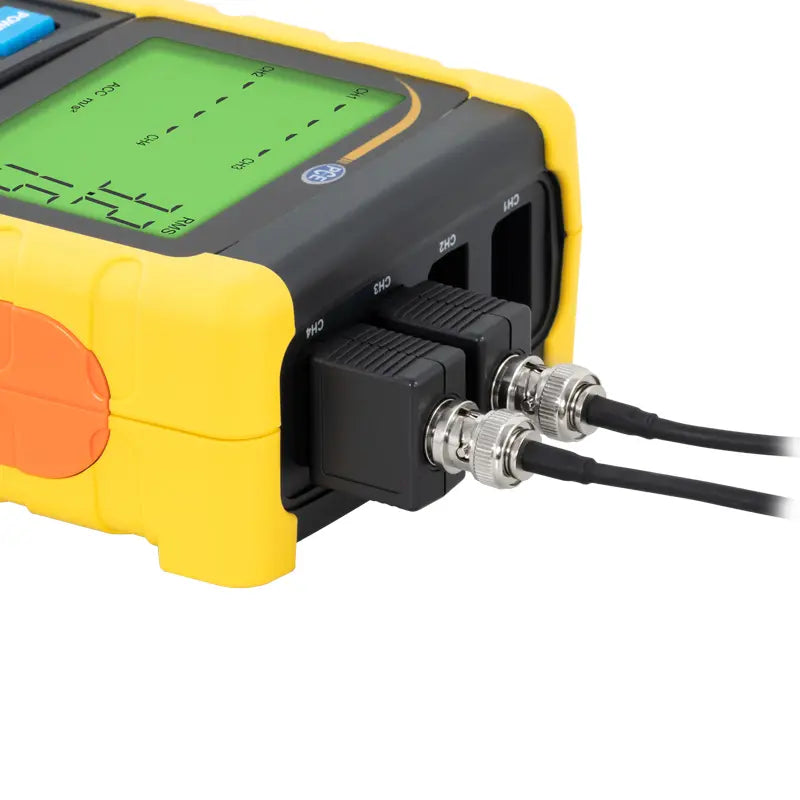

Number of channels 4 input channels
Measuring types speed, acceleration, expansion
Units acceleration: m/s², g, ft/s²
speed: mm/s, sm/s, inches/s
expansion: mm, inches
Frequency ranges 10 Hz ... 1 KHz
Peak Value Hold Acceleration, speed: measures/ updates the peak-value
Expansion: measures / updates pp value
Max. Hold Acceleration, speed: measures/ updates the max value
Expansion: measures / updates max. pp value
Max. Hold-Reset Keypress activation
Zero-function Keypress activation for acceleration (rms) measurement
Datalogger Scan Rate Automatic: 1 ... 3600 seconds
Manual: by pressing key

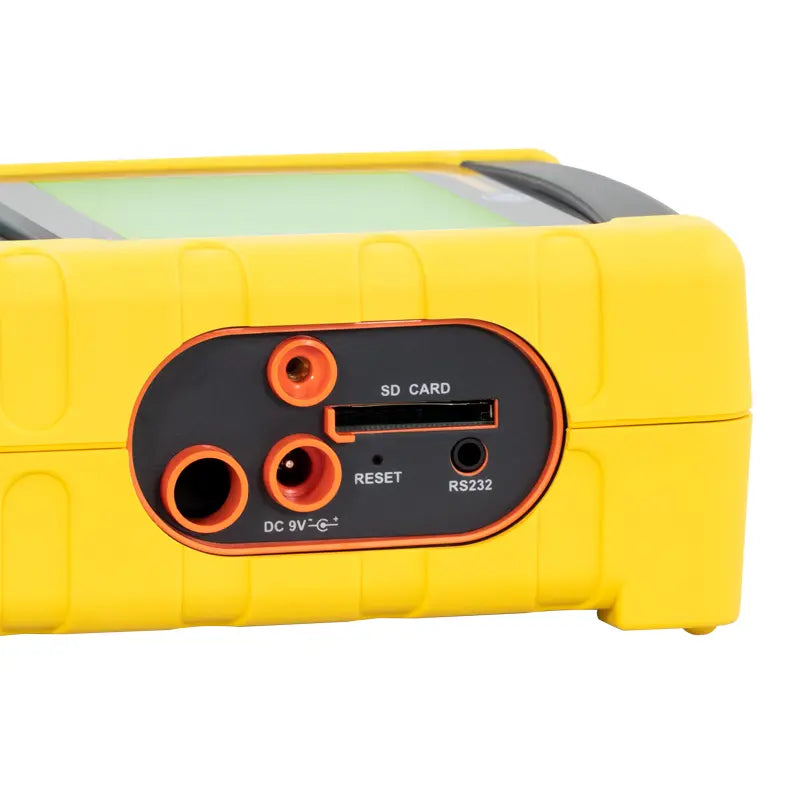

Memory Card SD Memory card (1 ... 16 GB)
Data Hold Function Holds Indicated Value
Audio Output Mini-Stereo Plug,
max. voltage: 2 V
output resistance: 100 Ohm
Operation Temperature 0 ... +50 °C / 32 ... 122 °F
Operation Humidity 85% R.H. max.
Power Supply 8 x 1.5 V AA batteries or 9 V AC adapter
Power Consumption NiMH Rechargeable battery 3 x 2700 mAh
Operation / Charging time Standard Operation: approx. 12 mA dc
Without background lights and switched off data logger: approx. 35 mA dc
Weight Meter: 515 g / 1.1 lbs Sensor with cable and magnet foot: 99 g / 0.2 lbs
Dimensions Main Device: 203 mm x 76 mm x 38 mm / 8.0 in x 3.0 in x 1.5 in
sensor: 16 mm x 37 mm / 0.6 in x 1.5 in caliber
cable length: 1.2 m / 3.9 ft
Electrical Specifications
Function Unit Range Accuracy
Acceleration m/s² 0.5 ... 199.9 m/s² ±(5 % rdg + 5 d)
g 0.05 ... 20.39 g @80 und 160 Hz
ft/s² 2... 656 ft/s²
Calibration Point: 50 m/s² (160 Hz)
Speed mm/s 0.5 ... 199.9 mm/s ±(5 % rdg + 5 d)
cm/s 0.05 ... 19.99 cm/s @80 und 160 Hz
inch/s 0.02 ... 7.87 inch/s
Calibration Point: 50 mm/s (160 Hz)
Expansion mm 1.999mm ±(5 % rdg + 5 d)
inch 0.078 in @80 und 160 Hz
Calibration Point: 0.141 mm (160 Hz)

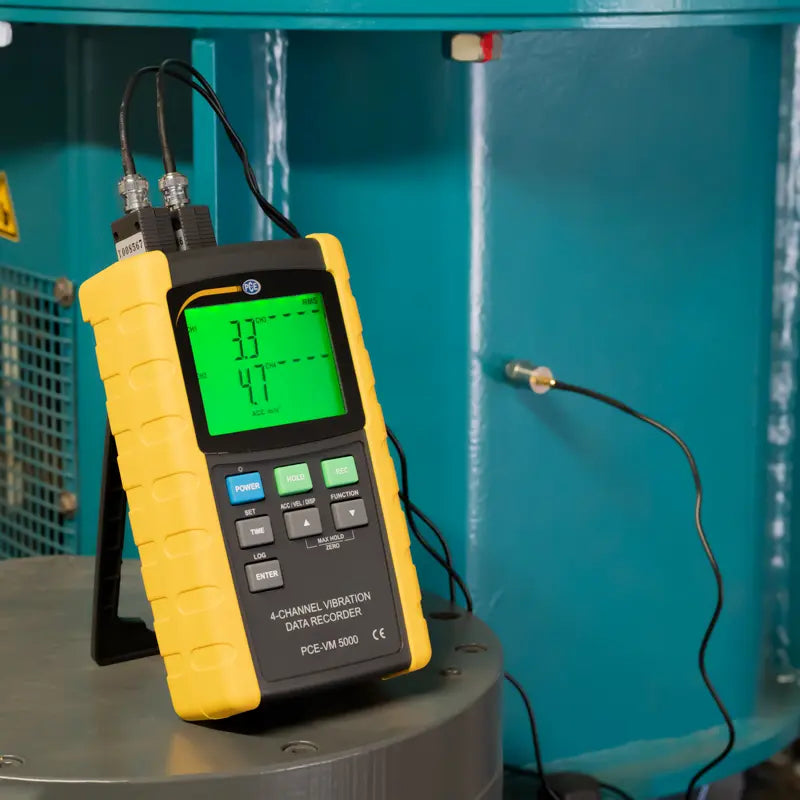

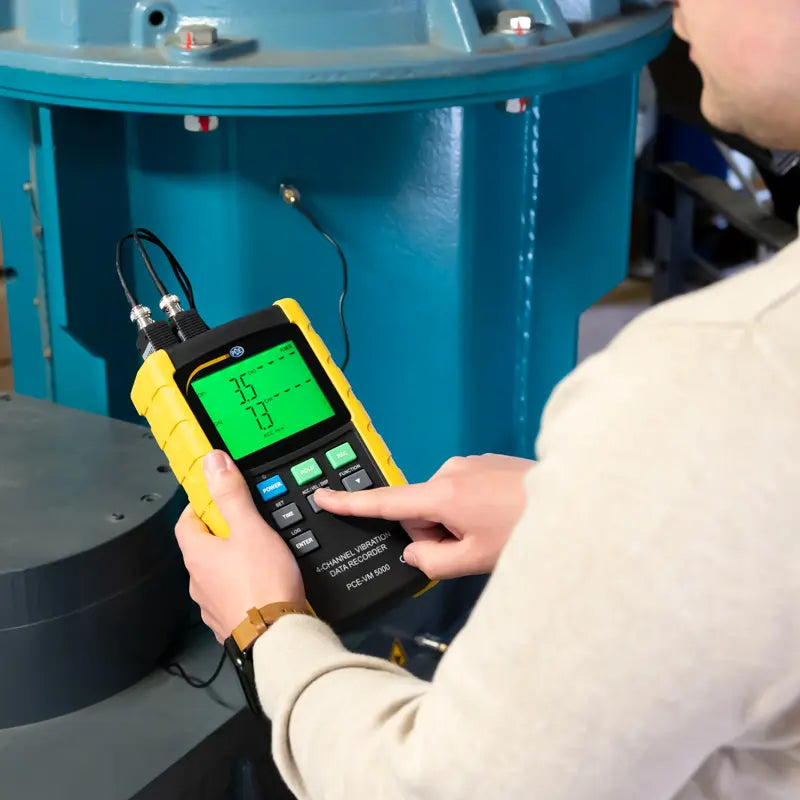

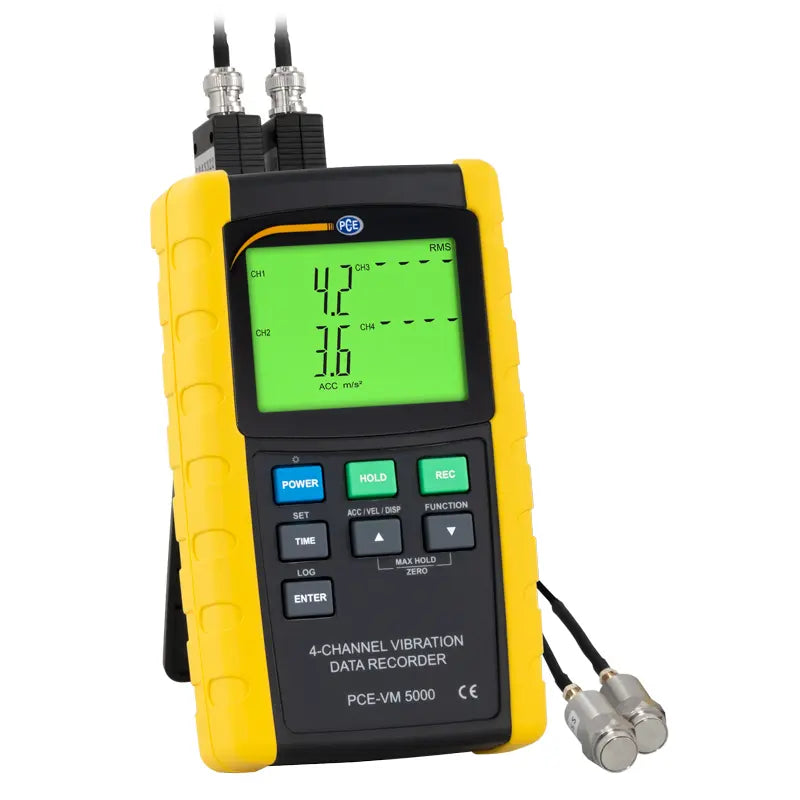

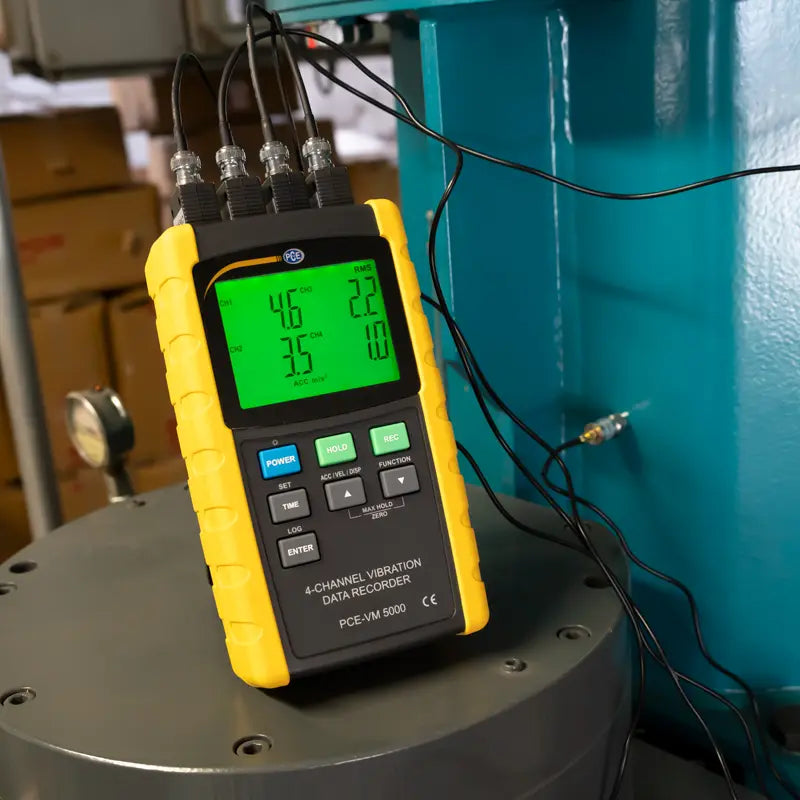

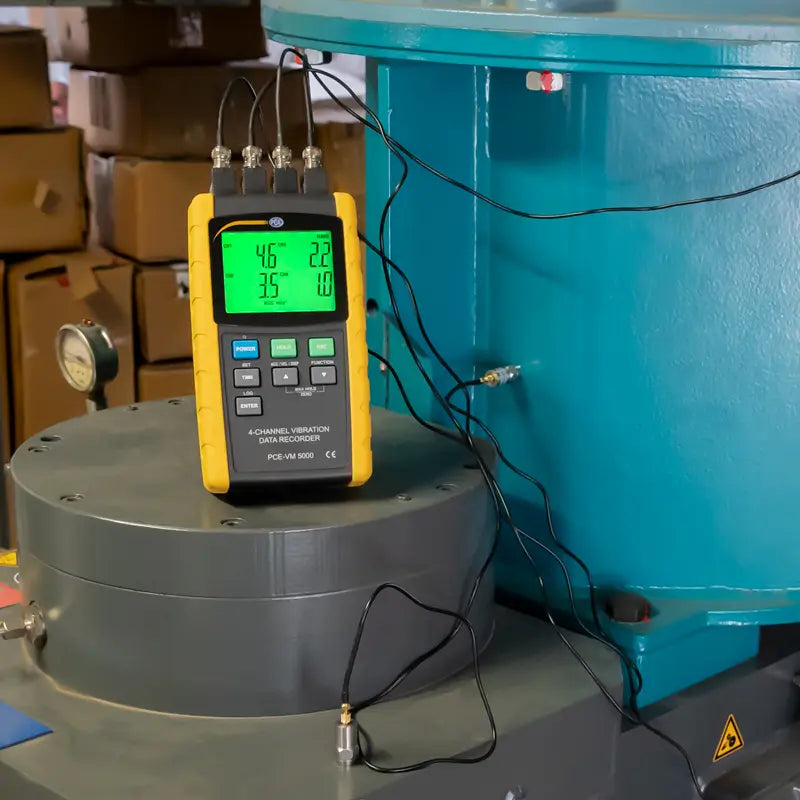

Vibration Meter PCE-VM 5000 display and storage of acceleration, speed and displacement measurement of vibrations/ 4-channel vibration Vibration Meter indicates 4 channels of simultaneous vibration metering through remote vibration sensors

The 4-channel PCE-VM 5000 Vibration Meter is especially designed for precise measurements of vibrations. Despite the fact that the 4-channel vibration Vibration Meter is a complex and sensitive device, its hardened design enables operation for many years. The PCE-VM 5000 Vibration Meter indicates a large, lighted LCD display for four channels of simultaneous vibration measurements from remote vibration sensors. The Vibration Meter measures in a frequency range of 10 Hz to 1 KHz for speed, acceleration, and displacement. The captured data values are saved on a SD memory card where you can choose between automatic and manual data storage. By means of the SD memory card the data can be transferred afterwards to a computer in order to analyze it in an excel file. With the PCE-VM 5000 Vibration Meter you can choose between different measurement units: for acceleration, the unit m/s², g, and ft/s² are able to be selected; for speed, mm/s, cm/s and inches/s can be used; and for the displacement, mm and inches can be choosen.
- Acceleration, speed, and displacement
- Long-lasting battery
- Precise measurement
- Large, LCD display with background lights
- Different measurement units
- Data storage on SD card
- Frequency range 10 Hz ... 1 KHz
- Evaluation of data at computer

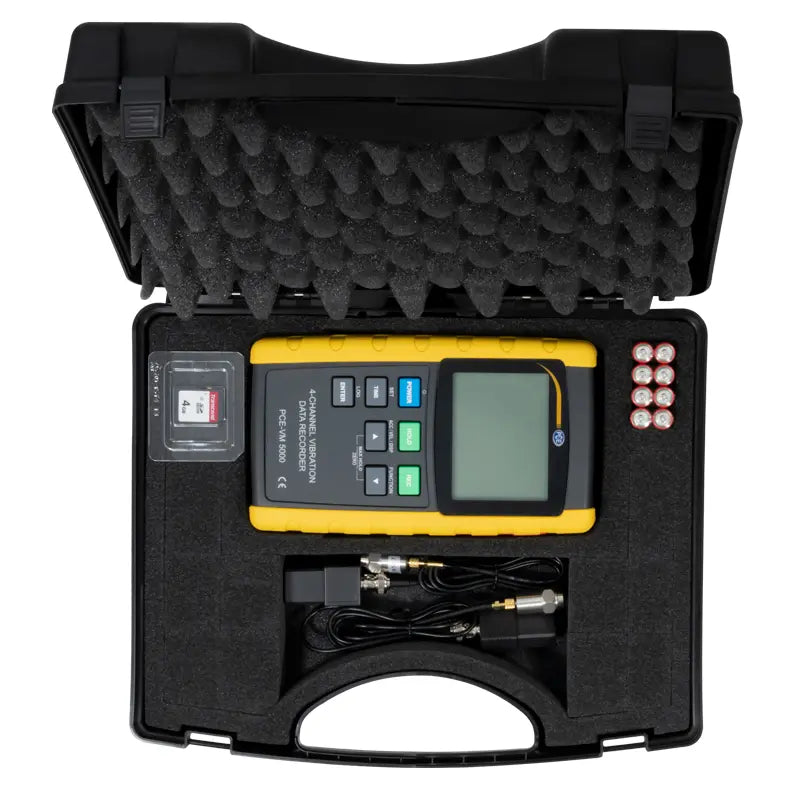

Delivery Contents
1 x 4-channel PCE-VM 5000 Vibration Meter

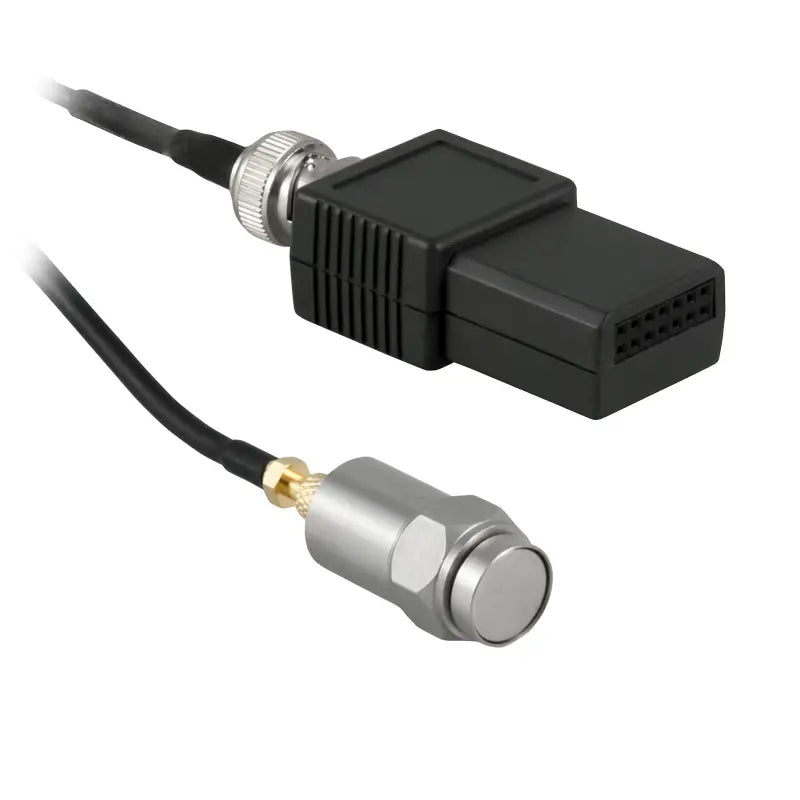

2 x Sensors with cable and magnet foot
1 x SD card
8 x 1.5 V AA batteries
1 x Instruction manual
1 x Transportation case
