PCE-S 42 - Μετρητής Δονήσεων για έλεγχο & συντήρηση

PCE Instruments logo
460.00 €
SKU PCE-S 42
Κωδικός Τιμή Στοκ
PCE-S 42 460.00 € 2-5 εργάσιμες


Στις τιμές δεν συμπεριλαμβάνεται ΦΠΑ 24%

Οδηγίες Χρήσης
Technical Specifications
Frequency range 30 Hz ... 15 KHz
Operating temperature -10 ... +40 °C
Output volume digitally adjustable (32 levels)
Headphones 32 Ω
Power supply 4 x AAA battery
Battery life 30 h
Dimensions 220 x 35 x 35 mm
Length sensors 70 / 280 mm

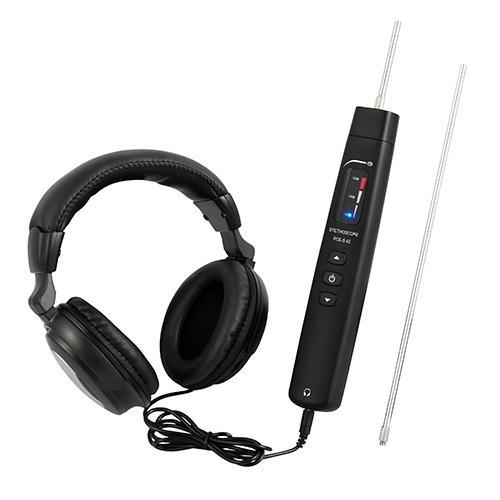

Automotive Tester / Mechanics Stethoscope PCE-S 42
Machine stethoscope to listen to bearings and motors /
two measuring tips of different lengths / 32 sound levels /
noise-suppressing headphones included in delivery
The automotive-testing mechanics stethoscope PCE-S 42 is designed for listening to individual machine parts, which enables you to carry out maintenance and repair work using the machine stethoscope. The use of a machine stethoscope thus makes it easier to listen to sound phenomena in bearings and motors. This makes it possible to amplify noises that imply that the machine is slightly damaged, which can cause severe impairments and damage to the machine if not observed. The machine stethoscope comes with headphones the shape of which is adapted to the human head and thus is perfectly suitable to be used in noisy environments. The big, padded earpieces have a noise-suppressing effect and at the same time offer wearing comfort.
The machine stethoscope is most frequently used to amplify knocking and grinding noises. When these noises occur, it is urgently necessary to maintain the machine tested thoroughly and, if necessary, replace individual parts to prevent financial losses due to machine downtime.

- two different measuring tips
- non-stationary measuring device
- 32 volume levels
- headphones adapted to the human head
- for preventive maintenance and servicing
- noise-suppressing headphones

Delivery contents
1 x mechanics stethoscope PCE-S 42,
1 x headphones,
1 x long measuring tip,
1 x short measuring tip,
6 x AAA batteries,
1 x carrying case with shoulder strap,
1 x instruction manual
