PCE-PBM 100 - Ψηφιακό Μικροσκόπιο

PCE Instruments logo
1,530.00 €
Κωδικός Τιμή Στοκ
PCE-PBM 100 1,530.00 € Κατόπιν Παραγγελίας

Στις τιμές δεν συμπεριλαμβάνεται ΦΠΑ 24%

Οδηγίες Χρήσης
Eyepieces WF 10x wide field eyepieces
Head Trinocular
xa0 360degrees rotatable
xa0 30degrees angled view
xa0 Right diopter adjustment
xa0 Interpupillary distance adjustable 55 ... 75 mm
Lenses 4
Magnification 4x, 10x, 40x, 100x
Numerical aperture 0.1 mm, 0.25 mm, 0.65 mm, 1.25 mm
Focal length 31.04 mm, 17.13 mm, 4.65 mm, 2.906 mm
Working distance 37.50 mm, 7.316 mm, 0.632 mm, 0198 mm
Coverslip 0.17 mm
Total magnification eyepiece + lensxa0 xa0 40, 100, 400, 1000
Tube length 160 mm
Conjugate distance 195 mm
Cross table 125 x 125 mm
Shift 40 x 60 mm
Hub 14 mm
xa0 xa0
Condenser xa0
Cover yes
Adjustment yes
yellow, green, blue
xa0 xa0
Lighting 3.5 V 1 W LED
Dimmable yes
xa0 xa0
Technical Data Camera / Display xa0
Camera xa0
Size 13"
Horizontal resolution 700 lines
976 x 582 pixels
LCD Display
Resolution 800 x 600 pixels
Colours 16777216
Video output highest resolution 1024 x 768 at 75 Hz
Video Format PAL, NTSC4.43, NTSC3.58, SECAM
xa0 xa0
General Technical Data xa0
Power supply 230 VAC 50 Hz
Environmental conditions 0 ... 40 degreesC / 85 % RH. max.
Dimensions 550 x 320 x 210 mm
Weight 5100 g
xa0 xa0

Digital Microscope
High quality digital microscope / Modern and ergonomic tripod / Trinocular /xa0
360° rotating head with adjustable eye relief / Diopteradjustment / LC display

The digital microscope impresses with its diverse application options in teaching and laboratory operations. Due to the technical equipment and great reliability, the digital microscope is particularly well suited to be used in advanced teaching facilities as well as in laboratories. The tripod from the digital microscope consists of the light yet strong material, aluminum, and is modern and ergonomically shaped. The eyepieces are very user-friendly, since both the diopter and the eye relief can be adjusted. This makes it easy for people who wear glasses to work with the digital microscope. There is also a rheostat on the side of our digital microscope with which the brightness can be easily adjusted. The LED light from the digital microscope is very durable and requires little maintenance. The color temperature is similar to that of sunlight, so an examination under the digital microscope is possible that is comparable to that under daylight.xa0

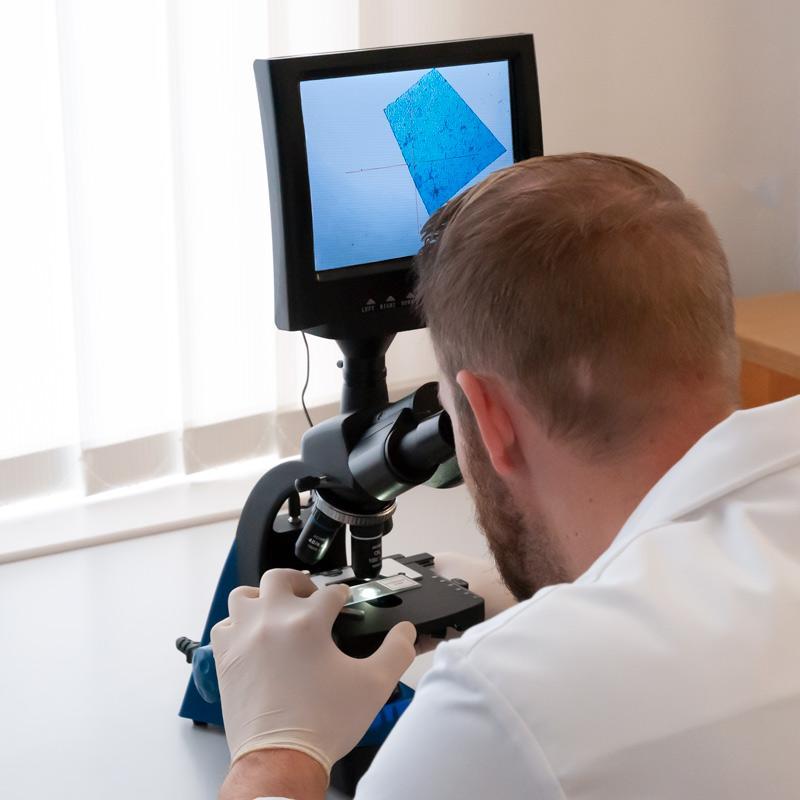

The LCD screen built on the 3rd eyepiece enables viewing of the specimen through the eyepieces and simultaneously on the screen. This allows e.g. when used in schools, the teacher to quickly check the settings and the preparation. As a further option, the screen offers an output option to an external imaging device such as a large screen or projector.

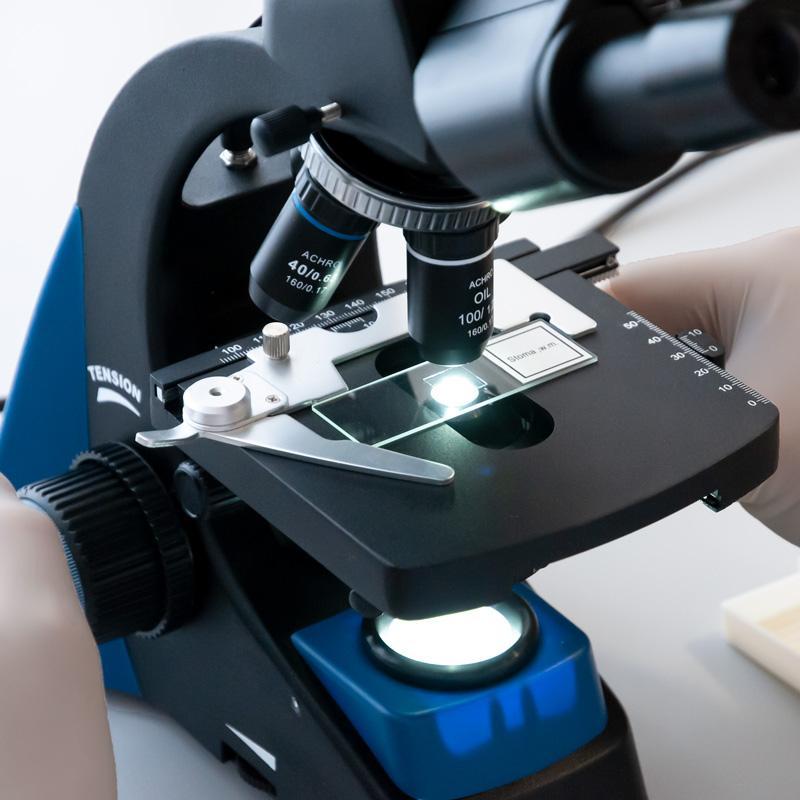

- Abbe condenser with adjustable iris
- Diopter adjustment on the right eyepiece
- Adjustable eye relief
- Trinocular
- With cross table 125 x 125 mm
- 4 lenses up to 100x magnification
- LC Display 800 x 600 pixels
- Video output

1 x Microscope PCE-PBM 100
1 x Connection cable
1 x Screen connection cable
3 x Colour filter
1 x LC display with camera
1 x Cinch video cable
1 x Video Cinch-USB converter
1 x Video software
1 x USB extension
1 x Cover hood
1 x User manual
