PCE-MFM 2400 - Μετρητής Ηλεκτρομαγνητικής Ακτινοβολίας & Εντασης Μαγνητικού Πεδίου DC Static

PCE Instruments logo
660.00 €
SKU PCE-MFM 2400
Κωδικός Τιμή Στοκ
PCE-MFM 2400 660.00 € 2-5 εργάσιμες


Στις τιμές δεν συμπεριλαμβάνεται ΦΠΑ 24%

Οδηγίες Χρήσης

Measuring range 0… 200 mT
xa0 200… 2,400 mT
xa0 0 ... 2,000 G
xa0 2,000 ... 24,000 G
xa0 xa0
Accuracy plus-minus 1% of reading
xa0 xa0
Resolution 0.01 mT
xa0 0.1 g
xa0 xa0
Measuring direction transversal
Magnetic field static (DC)
Unit mT, G
Power supply 1 x 9 V block battery
Automatic shutdownxa0 xa0 Automatic shutdown after 5 minutes in idle status
Modes
Hold mode, measurement mode
Display
Backlight digital 4-digit value display
Operating temperature 32 ... 122xa0degrees F, 0… +50 degrees C
storage temperature -4 ...xa0122xa0degrees F,xa0-20… +50 degrees C
Dimensions 7.28 x 3.82 x 1.57 inch; 185 x 97 x 40 mm
Weight 0.68 lb, 310 g
sensor Hall sensor transversal, cable length approx. 3.28 ft., 1 m

Precise Gaussmeter with an accuracy of 1% /xa0
automatic switch-off / transverse measurement / backlight /
Tesla and Gauss measurement / for static magnetic fieldsxa0

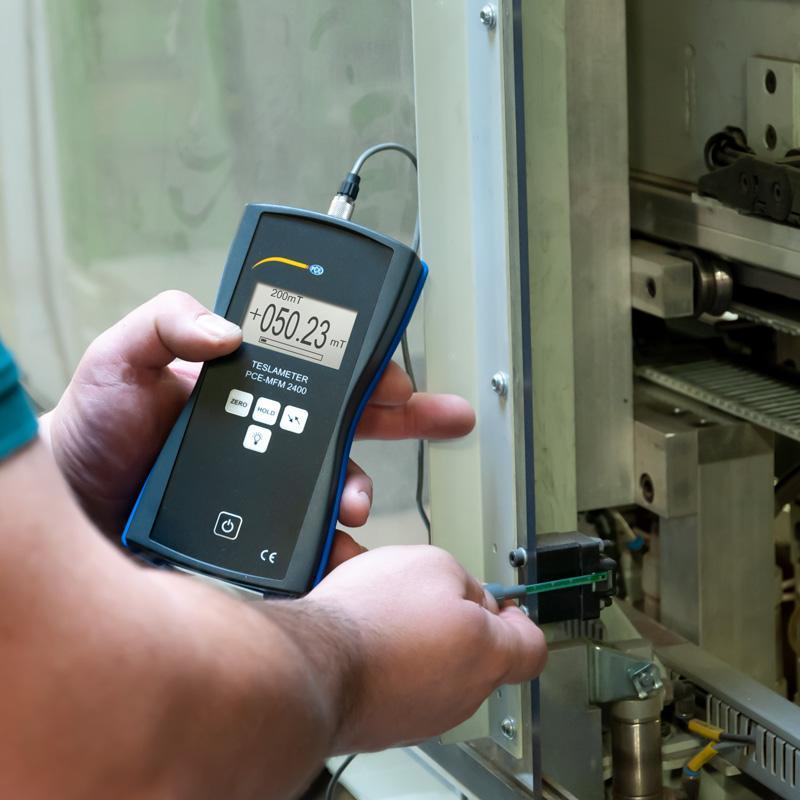

With a measuring range of 2,400 mT, the Electromagnetic Radiation Detector covers a wide range of measuring tasks.xa0The field strength meter has an accuracy of 1%.xa0This makes the Electromagnetic Radiation Detector a very precise measuring device.xa0For example, the Electromagnetic Radiation Detector can be used to test relays and permanent magnets for the existing magnetic field.xa0The Electromagnetic Radiation Detector is therefore used in production processes or in quality control.

With the backlight on the Electromagnetic Radiation Detector, the measured values u200bu200bare always easy to read even in poor lighting.xa0Thanks to the automatic switch-off function, the Electromagnetic Radiation Detector automatically switches itself off after 5 minutes.xa0This ensures that the battery of the Gauss meter does not discharge completely.


- Calibration certificate included in the scope of delivery
- very precise measurement technologyxa0
- Measuring range up to 24,000 G and 2,400 mT
- transverse sensor
- for measuring static magnetic fields
- automatic shutdown

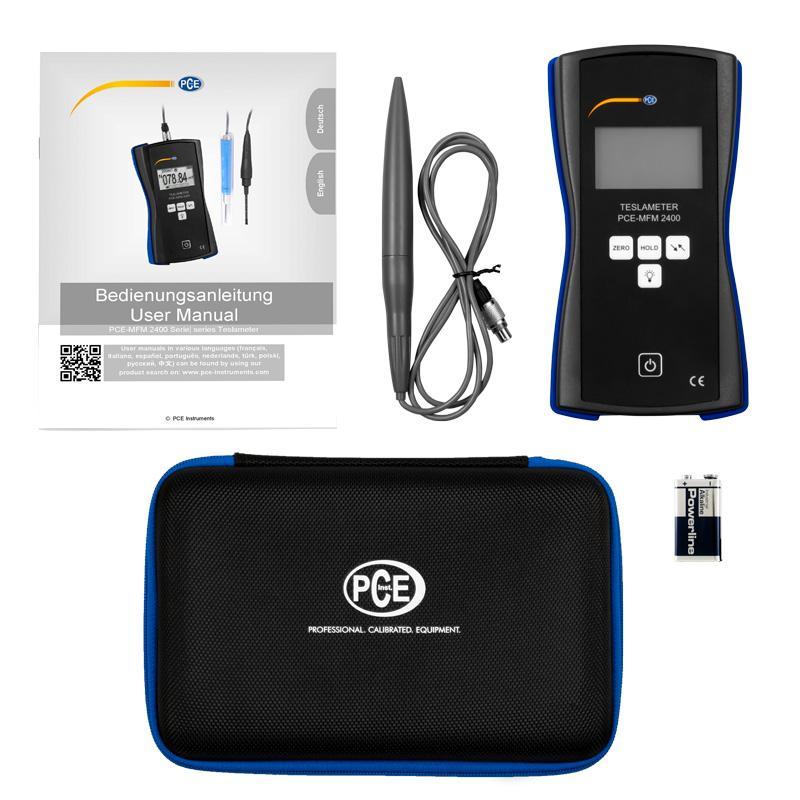

1 x Electromagnetic Radiation Detector PCE-MFM 2400

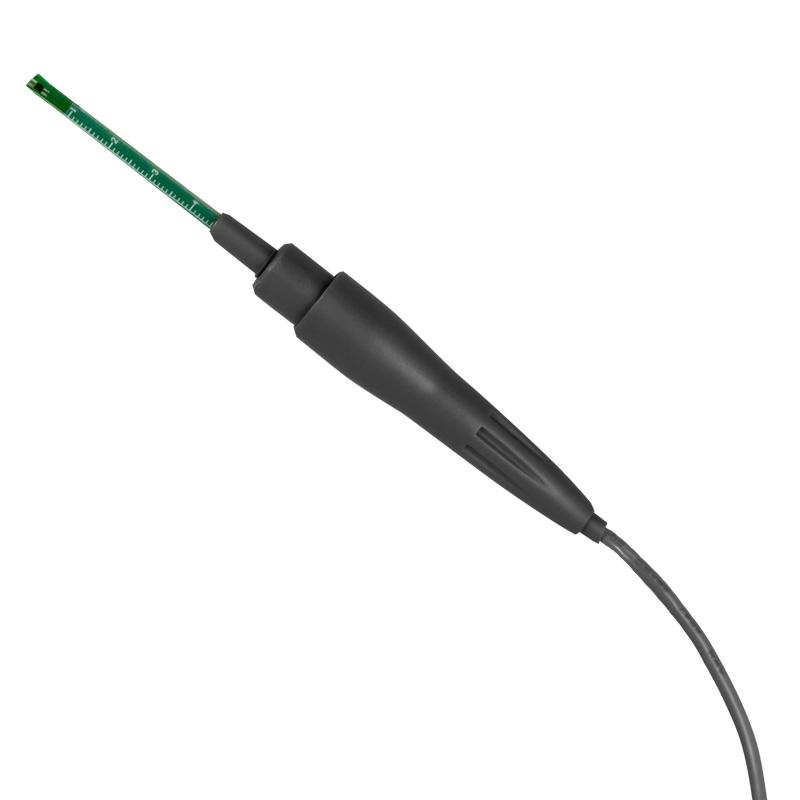

1 x Hall sensor (transverse)
1 x service bag
1 x ISO calibration certificate
1 x 9 V block battery
1 x instruction manualxa0
