PCE-DC3 - Aμπεροτσιμπίδα 2A - 1mΑ

PCE Instruments logo
114.00 €
SKU PCE-DC3
Κωδικός Τιμή Στοκ
PCE-DC3 114.00 € 2-5 εργάσιμες


Στις τιμές δεν συμπεριλαμβάνεται ΦΠΑ 24%

Οδηγίες Χρήσης
AC current
(50 / 60 Hz)
Range / Resolution / Accuracy
2 A  / 1 mA / ± 2.8 % + 10 dgt
80 A / 100 mA / ± 3.0 % + 8 dgt
DC current Range / Resolution / Accuracy
2 A / 1 mA / ± 3.0 % + 10 dgt
80 A / 100 mA / ± 3.0 % + 8 dgt
AC overload protection
(non-contact)
100 VAC up to 600 VAC 50 / 60 Hz
Flashlight illumination White LED
Conductor diameter 18 mm / 0.7 in maximum
Display 3 2/3 digit LCD display with backlighting
Power 2 - 1.5V AAA batteries
Casing PVC
Dimensions 164 x 65 x 32 mm / 6.4 x 2.5 x 1.2 in
Weight 175 g / 6.1 oz
Standards EN61010-1; CAT II / 600V
EN61010-2-032; CAT III / 300V

λειτουργίες

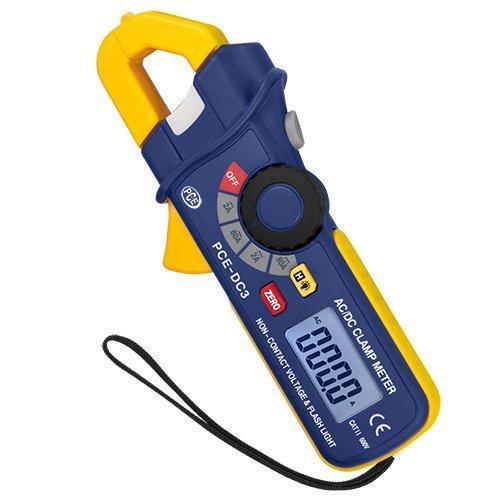

PCE-DC3 Clamp Meter
Measures AC/DC electrical current up to 80 amps
PCE-DC3 is a user-friendly digital clamp meter used to measure AC/DC electrical currents with high accuracy. This electrical current detector features a thoughtfully integrated built-in flashlight to illuminate dark spaces. This clamp meter should be part of every electrician's toolbox. The PCE-DC3 current clamp meter comes manufacturer calibrated. Optional ISO calibration is available as an accessory for an additional fee.
- 4-digit LCD display with backlight
- AC/DC current measurement up to 80 amps
- Save function
- DCA zero rest function
- Current tester
- Integrated flashlight
- Automatic range selection
- Automatic disconnect
- Clamp diameter: 18 mm / 0.7"

περιλαμβάνει
1 x PCE-DC3 clamp meter
1 x case
2 x batteries
1 x user manual
